Product
High-purity aluminium wire & rod engineered for precision. Reliable for industrial and electronic applications.
High Performance Aluminium Wire
Product Range
High Purity Al.Wire
The high purity Aluminium Wire for metalising purpose meets following International Standards.

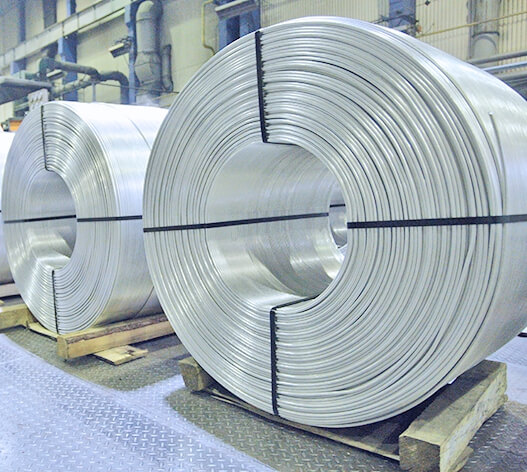

High Purity Al.Rod
The high purity Al. wire is used for the metalising of Polyester film, BOPP film & Paper. It is also used in the Electronic industries mainly in capacitors.
Tea Bag Wire
1000 Series
1080 Wire
Al. purity minimum 99.80% and wire diameter 1.50mm & above. Tensile strength 16 to 18 kg/mm2 & Elongation above 1%.
1090 Wire
Al. purity minimum 99.90% and wire diameter 1.50mm & above. Tensile strength 15 to 16 kg/mm2 & Elongation above 1%.
1199 Wire
Al. purity minimum 99.99% and wire diameter 1.50mm & above. Tensile strength 13 to 14 kg/mm2 & Elongation above 1%.
Raw Material
High Purity Aluminium Ingots. High Purity Aluminium Rods.
Manufacturing of Products

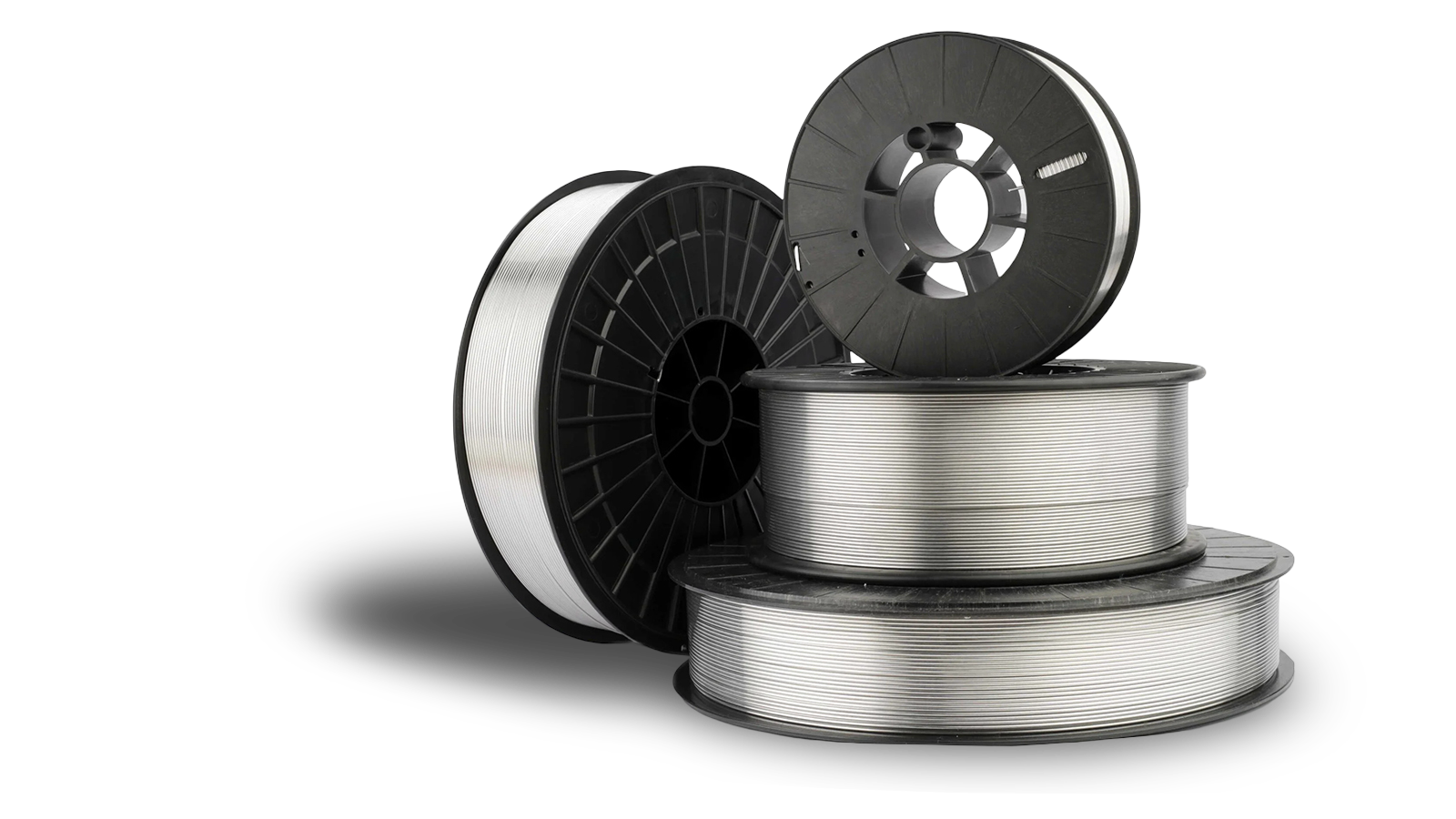

Aluminium Wire is produced on specially developed wire drawing machine within process gauging unit for diameter checks for each batch.

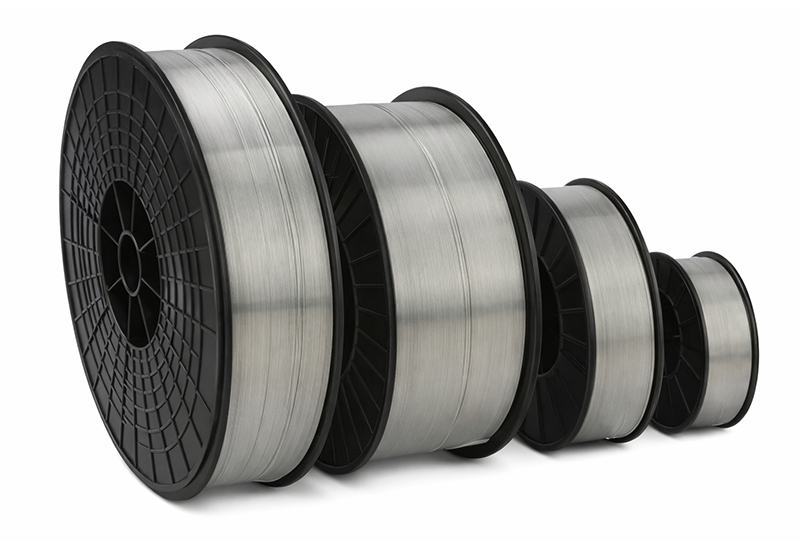

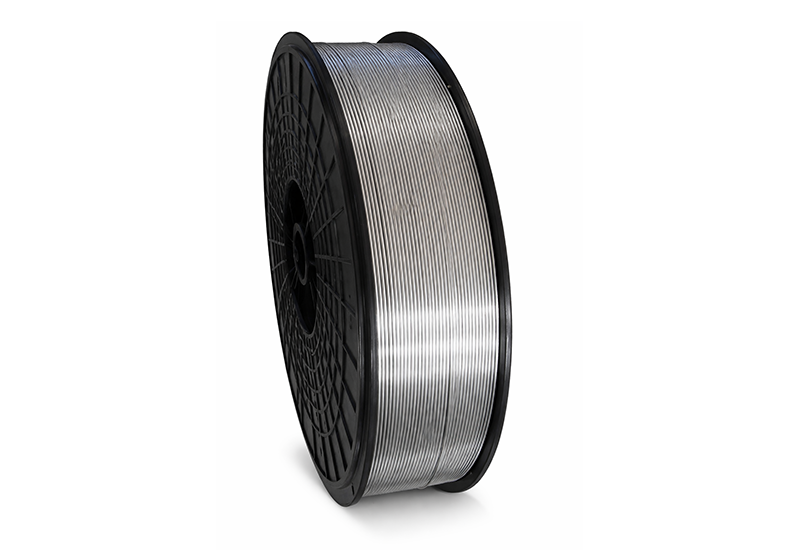

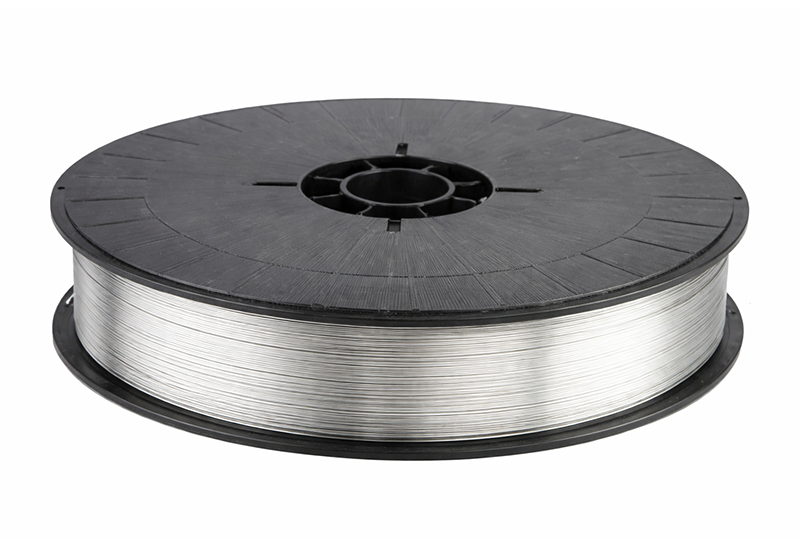

Aluminium Wires manufactured on drawing machine are wound on layer to layer on bobbins by specially developed winding machine. This layer to layer winding is a special feature as only layer-to-layer winding wires are used on highly automatic and sophisticated metalising machines.The spools are also developed in house with the help of local venders.
Specifications
Download our specification data sheets from below:
